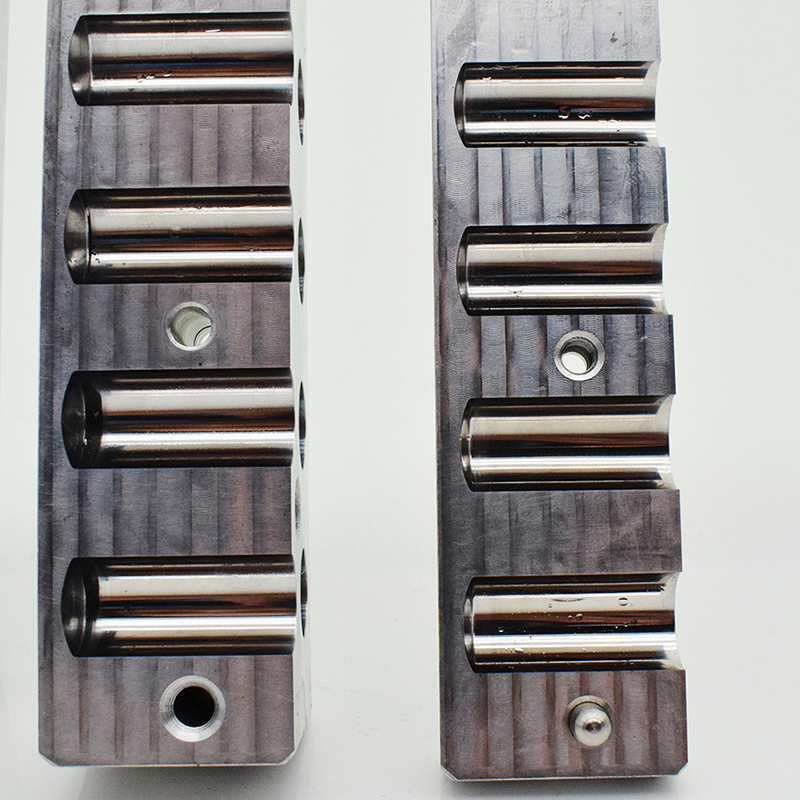

Flat-top profile
Specify a truly level tip, the edge radius and the finished exposed height so the application surface matches the product concept.
CUSTOM LIPSTICK TOOLING · 24 CAVITIES
24-Cavity Flat-Top Lipstick Filling Mold
A custom 24-cavity flat-top lipstick filling mold for round, level-tip lipstick and lip balm sticks, engineered around your bullet diameter, formula, package cup and filling process.
Request a 24-cavity mold review ↗Custom quotation based on your formula, geometry and production requirements.Quick answer

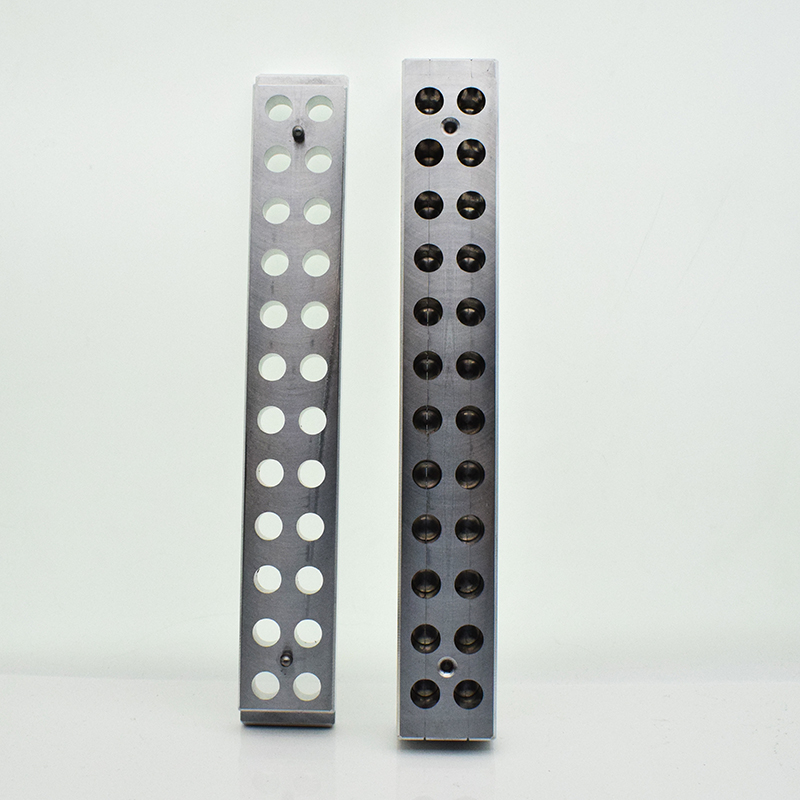

A 24-cavity flat-top lipstick mold forms twenty-four round bullets with a level application surface in one completed mold cycle. The flat tip, diameter, finished height and base geometry are customized to the formula and package.
BEST-FIT PRODUCTION INTENT
Where this cavity count fits.
Small-to-medium production runs for round lipstick or lip balm bullets with a clean, level flat-top profile.
Cavity count describes the number of forming positions in the mold. It is not a guaranteed hourly output figure. The complete cycle includes filling, cooling, demolding, inspection and transfer into the lipstick package.
Related search terms
24 cavity flat top lipstick mold · flat top lip balm mold · 24 hole lipstick filling mold · round flat tip lipstick mould
INFORMATION FOR QUOTATION
Define the complete process.
- Finished bullet diameter, flat-tip edge radius and exposed height
- Lipstick or lip balm formula and intended pouring temperature
- Package cup drawing, cup depth and physical component samples
- Cooling method, target output and surface acceptance criteria
Send a dimensioned drawing or physical package sample so the bullet and cup interface can be reviewed.
PRODUCTION REVIEW
Key considerations for a 24-cavity mold.

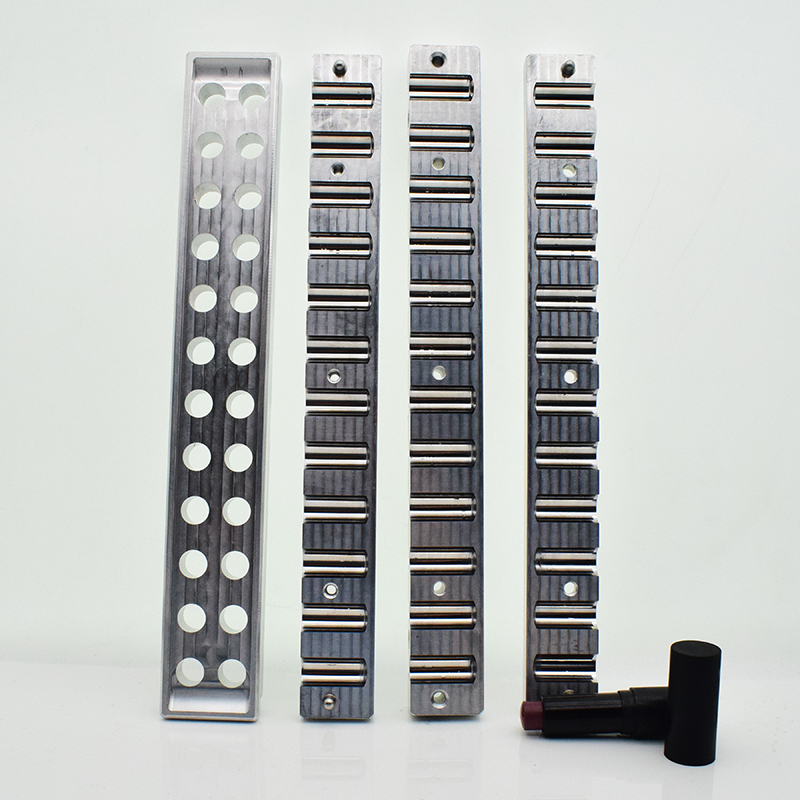

Upper and lower tooling
Review the complete mold assembly, cavity alignment and base-forming interface rather than treating the top and bottom sections separately.
Formula and release
Wax, oil, pigment and cooling conditions influence shrinkage, surface appearance and release from the straight round cavity.
FREQUENTLY ASKED QUESTIONS
Before choosing 24 cavities.
What makes this a flat-top lipstick mold?
Its cavity geometry creates a level, round product surface instead of a slanted, pointed or bird-beak tip. Exact dimensions are confirmed from the approved drawing or sample.
Can the same 24-cavity mold be used for lipstick and lip balm?
Only when the products share compatible dimensions, package interfaces and process behavior. Each formula and package combination should be reviewed before approval.
Is this an injection mold for lipstick packaging?
No. This page describes tooling that forms lipstick bulk into bullets. Injection tooling for plastic or metal package components is a different product.
COMPARE THE SERIES
Other lipstick mold configurations.
12 CAVITIES
12-Cavity Lipstick Filling Mold ↗
Sampling, formulation trials, pilot runs and flexible small-batch lipstick production
12 CAVITIES12-Cavity 12.1 mm Bird-Beak Lipstick Mold ↗
Sampling, pilot runs and small-batch production of 12.1 mm diameter bird-beak or moondrop lipstick bullets
12 CAVITIES9 mm Mini Bird-Beak Lipstick Filling Mold ↗
Mini, slim and travel-size lipstick production requiring a nominal 9 mm diameter bird-beak bullet
36 CAVITIES36-Cavity Bird-Beak Lipstick Filling Mold ↗
Production of bird-beak, moondrop and pointed lipstick bullets with a defined filling, cooling and transfer workflow
48 CAVITIES48-Cavity Lipstick Filling Mold ↗
Medium-volume lipstick production where output, mold handling and process control must remain balanced
72 CAVITIES72-Cavity Lipstick Filling Mold ↗
Higher-volume lipstick manufacturing with a defined filling line, cooling capacity and transfer process
PRODUCT OVERVIEWAll custom lipstick filling molds ↗
Review bullet geometry, formula, package fit and cavity-count decisions together.
FROM YOUR IDEA TO A TOOLING BRIEF
Discuss your 24-cavity lipstick mold project.
Share your formula type, dimensions and filling process.
We’ll help you define the next step.
